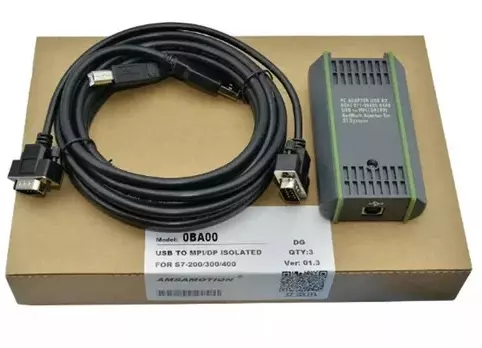

Siemens SIMATIC S7 PC Adapter USB A2 | PROFIBUS/MPI | 6GK1571-0BA00-0AA0
PC adapter USB A2 USB adapter (USB V2.0) for connection of a PG/PC or notebook to SIMATIC S7 via PROFIBUS or MPI contain USB cable 5 m,(6GK15710BA000AA0)
Feature
Specification
PC Interface
USB 2.0 (High Speed)
PLC Interface
RS 485 (PROFIBUS/MPI)
Max. Baud Rate
12 Mbps (PROFIBUS)
Supported OS
Windows 7/10/11 (32/64-bit)
Isolation
Integrated galvanic isolation
Cable Length
5 meters (USB cable included)
Rs.37,139.20 Rs.50,000.00
Available Offer
Share :
Product Details
PC adapter USB A2 USB adapter (USB V2.0) for connection of a PG/PC or notebook to SIMATIC S7 via PROFIBUS or MPI contain USB cable 5 m, MPI cable 0.3 m can be used under Windows XP/Vista/ Windows 7 32/64 bit and higher.
Q: Does this work with Windows 10/11?A: Yes, the USB A2 is compatible with modern 64-bit operating systems and is automatically recognized by TIA Portal and STEP 7.
Q: Can I use this with an S7-200 PLC?A: While it is primarily for S7-300/400, it can communicate with S7-200 systems if the baud rate and protocol (PPI) are supported by your software drivers.
Q: Is the USB cable included in the box?A: Yes, the package includes the PC Adapter USB A2, a 5-meter USB cable, and the documentation.
