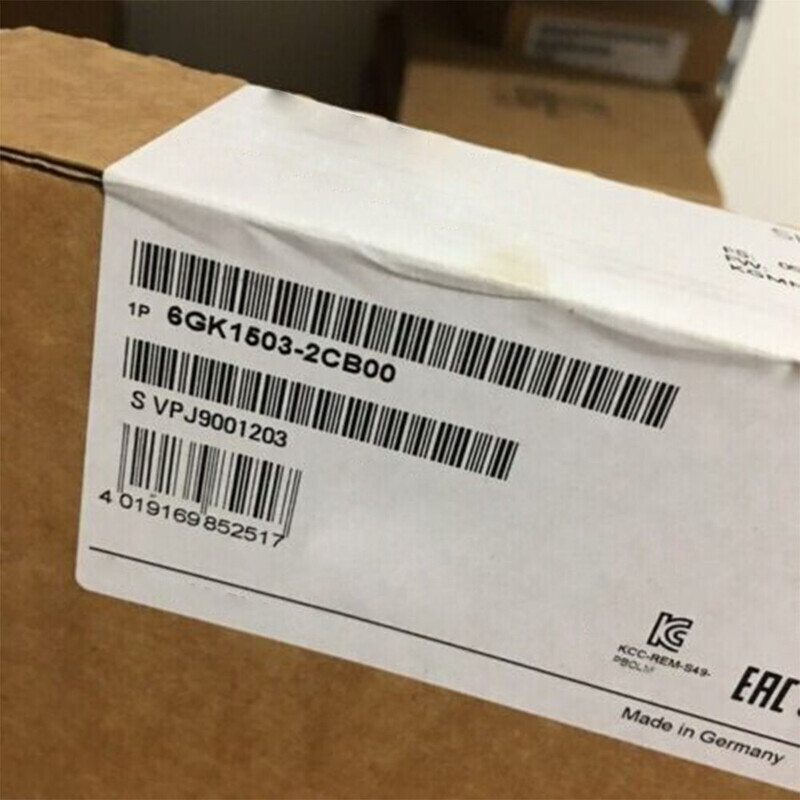

Siemens-SIMATIC-Net-OLM-G11-Optical-Link-Module-6GK1503-2CB00

Siemens SIMATIC Net OLM/G11 Optical Link Module | PROFIBUS | 6GK1503-2CB00

Name: Siemens SIMATIC Net OLM/G11 Optical Link Module | PROFIBUS | 6GK1503-2CB00
Brand: SIEMENS
SKU: 6GK15032CB00
Price: 68354.4 INR
Availability: InStock

PROFIBUS OLM/G11 V4.0

Feature,Specification

Interfaces,"1x RS-485 (Sub-D), 1x Optical (BFOC ports)"

Fiber Type,Multimode Glass Fiber (62.5/125 µm or 50/125 µm)

Max. Distance,Up to 3000 meters (3 km)

Protocols,PROFIBUS (DP/FMS) and MPI

Baud Rate,9.6 Kbps to 12 Mbps (Auto-detection)

Topology Support,"Line, Star, Redundant Ring"

Power Supply,24V DC (Redundant supply possible)

Rs.68,354.40

Available Offer

Product Details

PROFIBUS OLM/G11 V4.0 optical link module with 1 RS 485 and 1 glass fiber optic cable interface (2 BFOC sockets), with signaling contact and test port

Q: What is the difference between OLM/G11 and OLM/P11?A: The G11 (this model) is for Glass Fiber (long distance), while the P11 is for Plastic Fiber (POF/PCF) used for shorter distances.

Q: Can I mix this with other PROFIBUS modules?A: Yes, it is fully transparent to the PROFIBUS protocol. Your PLC sees it as a standard network segment.

Q: Does it support 12 Mbps speed?A: Yes, it supports the full PROFIBUS speed range up to 12 Mbps with automatic baud rate detection.
