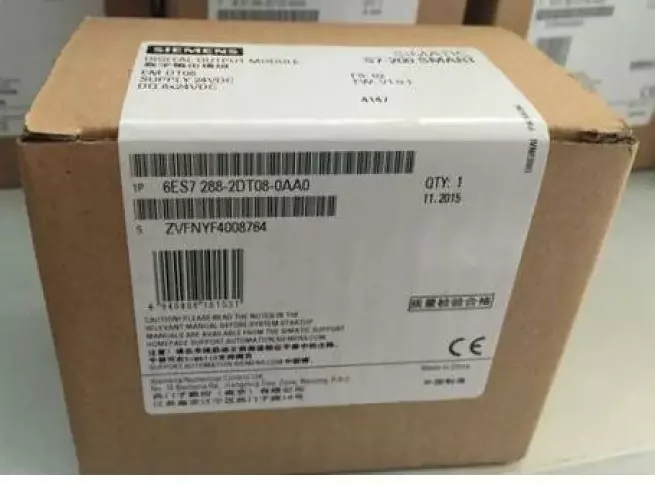

Siemens SIMATIC S7-200 SMART SM DT08 - 6ES7288-2DT08-0AA0 | 4DI / 4DO Transistor
SIMATIC S7-200 SMART, Digital output SM DT08, 8 DO, 24 V DC, Transistor 0.75A,(6ES72882DT080AA0)
Technical Specifications
Total I/O Points: 8 Channels.
Digital Inputs: 4 DI (24V DC, Sink/Source compatible).
Digital Outputs: 4 DO (Transistor type, 0.75A).
Mounting: Standard DIN Rail (side-mount to the CPU).
Dimensions: Small footprint (35mm width) to save panel space.
Protection: IP20 rated.
Available Offer
Share :
SIMATIC S7-200 SMART, Digital output SM DT08, 8 DO, 24 V DC, Transistor 0.75A
FAQ Section (For Product Page)
Q: Can I use this with an S7-200 SMART SR20 (Relay) CPU?
A: Yes! Even if your CPU has Relay outputs, you can add this Transistor expansion module to handle high-speed signals.
Q: Does it support Sink or Source wiring?
A: The inputs are bi-directional (Sink/Source), but the transistor outputs are typically Source (PNP) for standard industrial logic.
Q: Is the terminal block removable?
A: Yes, Siemens SM modules usually feature a removable connector, making it easy to replace the module without re-wiring the entire panel.
