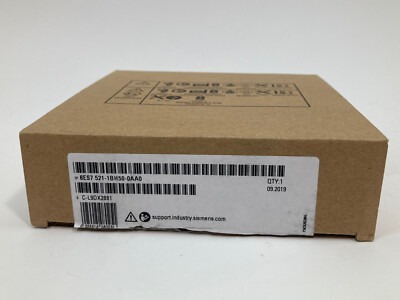

Siemens SIMATIC S7-1500 Digital Input Module | DI 16x24VDC SRC BA | 6ES7521-1BH50-0AA0
SIMATIC S7-1500, digital input module DI 16x24 V DC BA, sourcing input;(6ES75211BH500AA0)
Feature,Specification
Input Type,Sourcing (SRC)
Number of Inputs,16 Digital Inputs
Rated Voltage,24V DC
Input Delay,3.2 ms
Module Width,35 mm
Front Connector,Required (Screw or Push-in) - Sold Separately
Rs.13,563.20
Available Offer
Share :
Product Details
SIMATIC S7-1500, digital input module DI 16x24 V DC BA, sourcing input; 16 channels in groups of 16; Input delay 3.2 ms; Input type 3 (IEC 61131): Front connector (screw terminals or push-in) to be ordered separately FAQ SECTION
Q: What is the main difference between this and the 6ES7521-1BH10-0AA0?A: The 1BH10 is a sinking input (M-reading), which is the standard for most PNP sensors. This 1BH50 is a sourcing input (P-reading).They are not interchangeable without changing your sensor wiring.
Q: Does this module include the front connector?A: No. Unlike the 1BH10, the front connector for this 35mm module must be ordered separately.
Q: Can I use this with 2-wire sensors?A: Yes, it supports 2-wire sensors (Type 3) with a maximum quiescent current of 1.5 mA.
