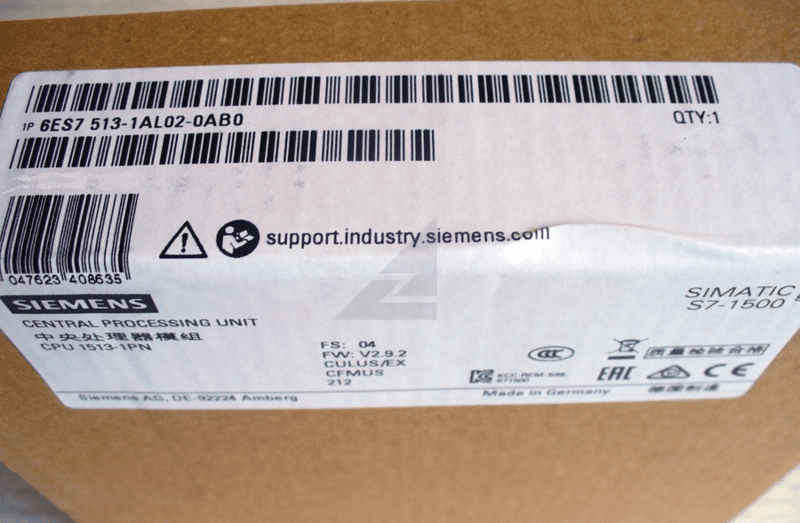

Siemens SIMATIC S7-1500 CPU 1513-1 PN | 300KB Code / 1.5MB Data | 6ES7513-1AL02-0AB0

CPU 1513-1 PN, 300KB Prog., 1,5MB Data,(6ES75131AL020AB0)

Feature	Specification
Work Memory	300 KB (Code), 1.5 MB (Data)
Bit Performance	40 ns (Fast processing)
Interface	1 x PROFINET IRT (2-port switch)
Integrated Functions	Motion Control, Web Server, OPC UA, Diagnostics
Memory Card	Required (SIMATIC Memory Card)
Display	3.45 cm Front Display for Diagnostics

Rs.150,000.00

Available Offer

Product Details

SIMATIC S7-1500, CPU 1513-1 PN, central processing unit with working memory 300 KB for program and 1.5 MB for data, 1. interface: PROFINET IRT with 2 port switch, 40 NS bit-performance, SIMATIC memory card necessary. Product is being phased out. New 6ES75111A030AB0 offers more performance, memory and energy efficiency at no additional cost. The S7-1500 CPUs replace previous version with full compatibility. See SIOS entry 109815653. If customer wants predecessor, please note production has moved to China; ensure the CoO is OK before proceeding.

Q: Is there a newer version of this CPU?A: Yes, the successor model is the 6ES7513-1AM03-0AB0, which offers even more memory. However, the 1AL02 is still widely used and available as a reliable spare part.

Q: Can I use this for Motion Control?A: Absolutely. It supports integrated technology objects for controlling speed, positioning, and synchronized axes.

Q: Does it come with the memory card?A: No. A SIMATIC Memory Card (SMC) is mandatory and must be ordered separately based on your project size.
