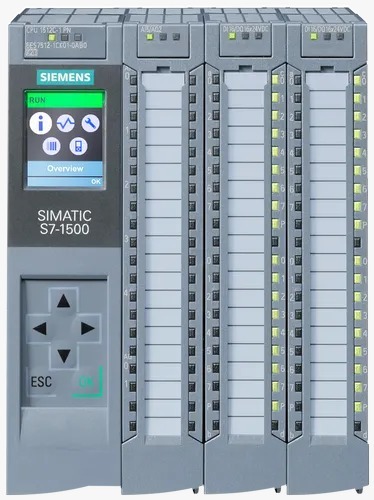

Siemens-SIMATIC-S7-1500-Compact-CPU-1512C-1-PN-6ES7512-1CK01-0AB0

Siemens SIMATIC S7-1500 Compact CPU 1512C-1 PN | 32 DI/DO, 5 AI/2 AO | 6ES7512-1CK01-0AB0

SIMATIC S7-1500 Compact CPU CPU 1512C-1 PN,(6ES75121CK010AB0)

Feature	Specification
Integrated Digital I/O	32 Digital Inputs / 32 Digital Outputs (24V DC)
Integrated Analog I/O	5 Analog Inputs / 2 Analog Outputs
Work Memory	250 KB (Code), 1 MB (Data)
Bit Performance	48 ns (Processing speed)
Interface	1 x PROFINET IRT (2-port switch)
Technology Functions	High-speed counters (up to 100 kHz), PTO, PWM

Non-returnable

Rs.347,088.00

Available Offer

Product Details

SIMATIC S7-1500 Compact CPU CPU 1512C-1 PN, central processing unit with working memory 250 KB for program and 1 MB for data, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high speed counters, 4 high speed outputs for PTO/PWM/frequency output 1. interface: PROFINET IRT with 2 port switch, 48 NS bit-performance, incl. front connector push-in, SIMATIC memory card necessary

Q: Do I need a memory card for this compact CPU?A: Yes. Even though it is "compact," it still requires a SIMATIC Memory Card (SMC) to store the program.

Q: What front connectors does it use?A: It requires S7-1500 front connectors (push-in or screw type) for the integrated I/O pins. These are sold separately.

Q: Can I still add more modules to this CPU?A: Yes, you can expand it further by adding standard S7-1500 I/O modules to the right side of the CPU on the rail.
