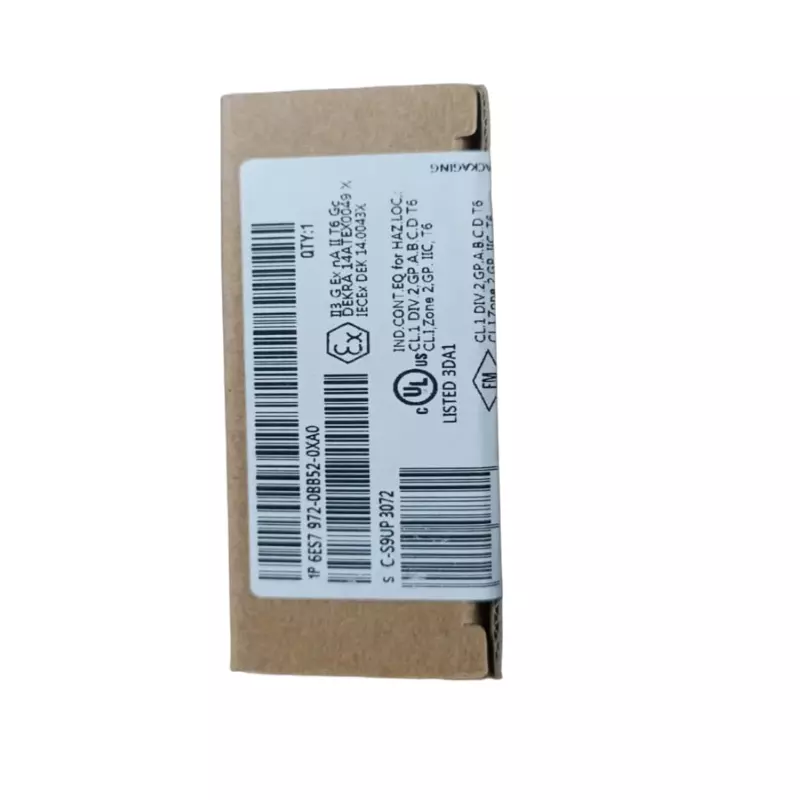

Siemens SIMATIC DP PROFIBUS Connector | 90° Angle | With PG Port | 6ES7972-0BB52-0XA0
Feature
Specification
Cable Outlet
90 Degree Angle
Integrated PG Port
Yes (For connecting PG/OP)
Connection Method
Insulation Displacement (IDC) / FastConnect
Transmission Rate
Up to 12 Mbit/s
Terminating Resistor
Integrated (Switchable)
Compatibility
All PROFIBUS nodes (PLC, HMI, VFD)
Rs.2,275.00 Rs.11,375.00
Available Offer
Share :
Product Details
SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, Insulation displacement method FastConnect, With PG receptacle 15.8x 59x 35.6 mm (BxHxD)
Q: What is the benefit of the PG Port in 6ES7972-0BB52-0XA0?A: The PG Port allows you to connect a programming device (like a laptop with a PC Adapter) or an HMI without disconnecting the existing PROFIBUS cable.
Q: Can I use this with standard PROFIBUS cables?A: Yes, it works best with the Siemens FastConnect (FC) PROFIBUS cable, but it is also compatible with other standard PROFIBUS cables.
Q: When should I set the resistor switch to 'ON'?A: The switch should be 'ON' only at the two physical ends (first and last node) of the PROFIBUS segment. All middle nodes should be set to 'OFF'.
