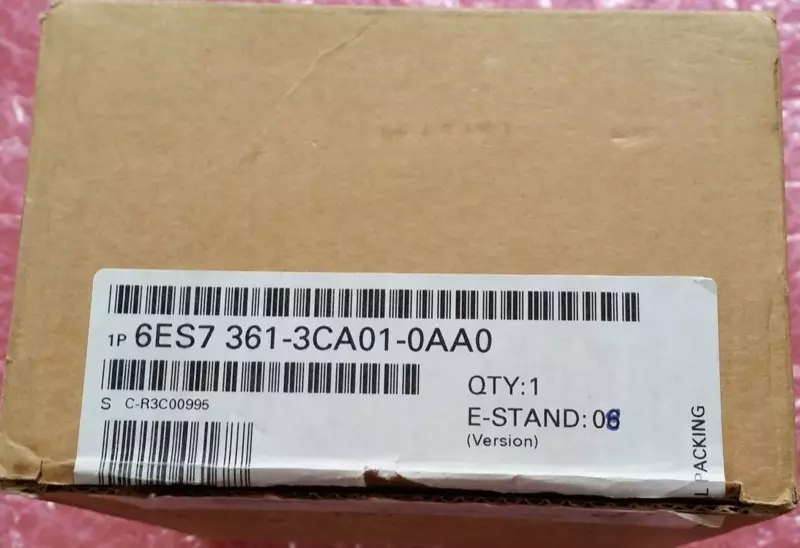

Siemens SIMATIC S7-300 IM 361 Interface Module | Expansion Rack Connection | 6ES7361-3CA01-0AA0

Name: Siemens SIMATIC S7-300 IM 361 Interface Module | Expansion Rack Connection | 6ES7361-3CA01-0AA0
Brand: SIEMENS
SKU: 6ES73613CA010AA0
Price: 45708.0 INR
Availability: InStock

IM 361 Interface Module in ER,with K-Bus,(6ES73613CA010AA0)

Feature,Specification

Function,Interface Module (Receive)

Supply Voltage,24 V DC

Input Current,Max. 500 mA

Power Loss,Typ. 5 W

Rack Support,"Used in Expansion Racks 1, 2, and 3"

Bus Support,Includes K-Bus (C-Bus) communication

Dimensions,80 x 125 x 120 mm (Width x Height x Depth)

Rs.45,708.00

Available Offer

Product Details

SIMATIC S7-300, connection IM 361 in expansion rack for connection to central rack (IM360), supply voltage 24 V DC, with C-bus

Q: What is the difference between IM 360 and IM 361?A: The IM 360 is a "Send" module placed in the central rack, while the IM 361 is a "Receive" module placed in each expansion rack.

Q: Does IM 361 require an external 24V supply?A: Yes, it must be connected to a 24V DC supply to power itself and the modules in its expansion rack.

Q: How many IM 361 modules can I use in one system?A: You can use up to 3 IM 361 modules to connect three expansion racks to one central controller.
