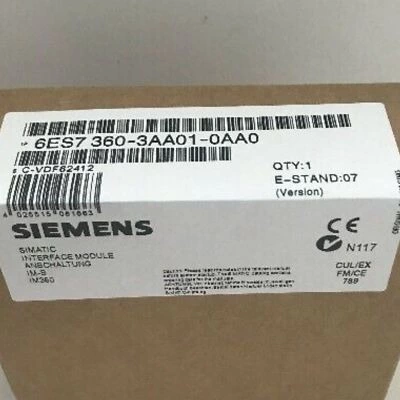

Siemens SIMATIC S7-300 IM 360 Interface Module | Send Module | 6ES7336-3AA01-0AA0
Feature,Specification
Function,Interface Module (Send)
Rack Connection,"Connects Rack 0 to Rack 1, 2, and 3"
Max. Distance,Up to 10 Meters (Between racks)
Current Consumption,350 mA (Internal)
Data Cable,Requires 368-series connecting cable
Mounting,Must be placed in Slot 3 of the Central Rack
Available Offer
Product Details
SIMATIC S7-300,INTERFACE MODULE IM 360 IN CENTRAL RACK, FOR CONNECTING MAX. 3 EXPANSION RACKS, WITH K-BUS
Q: Where should I place the IM 360 module?A: It must always be installed in Slot 3 of the Central Rack (Rack 0), right next to the CPU.
Q: Do I need another module to receive the signal?A: Yes, for every expansion rack, you will need an IM 361 (6ES7361-3CA01-0AA0) "Receive" module.
Q: What is the maximum distance allowed?A: You can expand your racks up to a total distance of 10 meters using special connecting cables.
