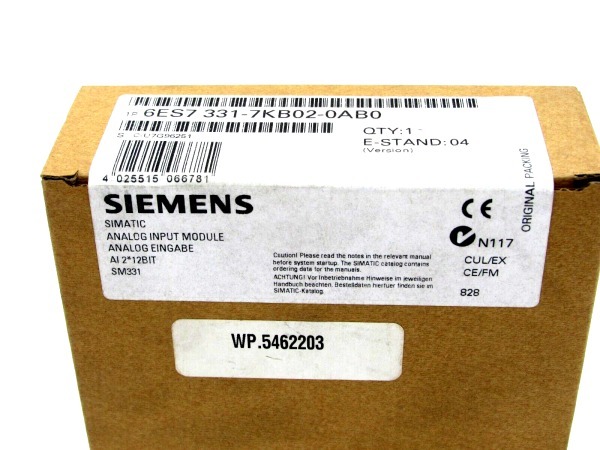

Siemens-S7-300-SM-331-6ES7331-7KB02-0AB0-2AI-Analog-Input-Module

Siemens SIMATIC S7-300 SM 331 - 6ES7331-7KB02-0AB0 | 2-Channel Analog Input Module

SIMATIC S7-300, analog input SM 331,(6ES73317KB020AB0)

Feature	Specification
Input Channels	2 Analog Inputs
Resolution	9, 12, or 14 Bits (Programmable)
Input Types	Voltage, Current, Resistors, Thermocouples, RTDs
RTD Support	Pt100, Ni100
Thermocouple Support	Type E, J, K, L, N
Isolation	Optically isolated from the backplane
Connector Type	20-Pin Front Connector (Required)

Rs.43,680.00

Available Offer

Product Details

SIMATIC S7-300, analog input SM 331, isolated, 2 AI, resolution 9/12/14 bits, U/I/thermocouple/resistor, alarm, diagnostics, 1x 20-pole, removing/inserting with active backplane bus

Q: Which front connector is needed for 6ES7331-7KB02-0AB0?A: This module requires a 20-pin front connector. Please ensure you order it separately as it is not part of the standard module package.
Q: Can I use this for temperature measurement with Pt100?A: Yes, it has built-in support for RTDs (Pt100/Ni100) and various Thermocouples, so you don't need external transmitters.
Q: How is the input range configured?A: The range (Voltage/Current/Temp) is configured using the range cards (cubes) on the side of the module and the hardware configuration in Step 7 or TIA Portal.
