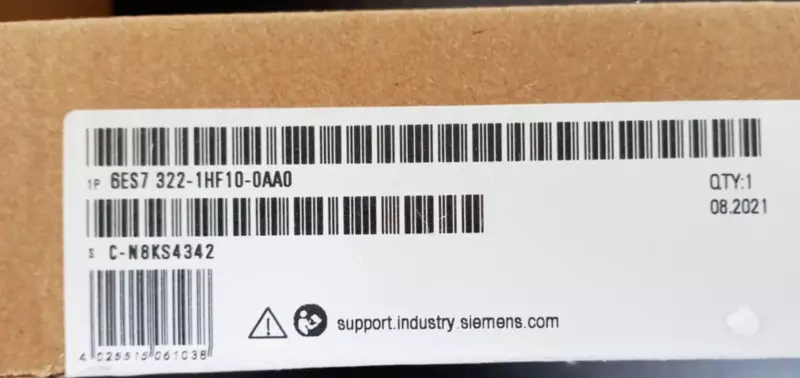

Siemens-S7-300-SM-322-6ES7322-1HF10-0AA0-8DO-Relay-Output-Module-Original

Siemens SIMATIC S7-300 SM 322 - 6ES7322-1HF10-0AA0 | 8-Channel Relay Output Module

SIMATIC S7-300, Digital output SM 322, isolated, 8 DO (relay), 1x 40-pole, 24 V DC, 5 A or 230 V AC, 5 A, connectors with spring-loaded terminal can be used as of 6ES7392-1BM01-0AA0

Feature	Specification
Output Channels	8 Digital Outputs
Output Type	Relay (Dry Contact)
Switching Current	Up to 2.0A per channel
Voltage Support	24V - 120V DC / 24V - 230V AC
Isolation	Optically isolated in groups of 2
Connector Type	20-Pin Front Connector (Required)

Rs.42,880.00

Available Offer

Product Details

SIMATIC S7-300, Digital output SM 322, isolated, 8 DO (relay), 1x 40-pole, 24 V DC, 5 A or 230 V AC, 5 A, connectors with spring-loaded terminal can be used as of 6ES7392-1BM01-0AA0

Q: What is the difference between 1HF10 and 1HF00?A: The 1HF10 is an updated/specialized version of the 1HF00 with improved electrical characteristics for specific industrial environments, though they share the same 2A rating.

Q: Is the 20-pin front connector included?A: No, like other S7-300 modules, the 20-pin front connector must be ordered as a separate accessory.

Q: Can this switch 230V AC loads?A: Yes, it is rated for up to 230V AC, making it ideal for direct motor or heater control.
