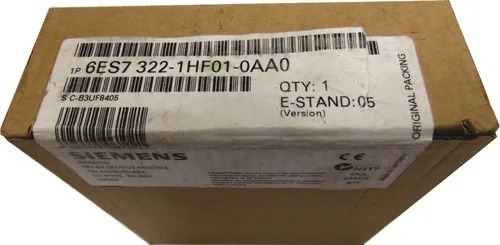

Siemens-S7-300-SM-322-6ES7322-1HF01-0AA0-8DO-Relay-5A-Output-Module

Siemens SIMATIC S7-300 SM 322 - 6ES7322-1HF01-0AA0 | 8-Channel Relay Output (5A)

SM322, 8DA, 24V DC/2A or 230V AC/2A,(6ES73221HF010AA0)

Feature	Specification
Output Channels	8 Digital Outputs
Output Type	Relay (Dry Contact)
Switching Current	5.0A per channel (High Capacity)
Switching Voltage	24V - 120V DC / 24V - 230V AC
Isolation	Optically isolated in groups of 1
Connector Type	20-Pin Front Connector (Required)

Rs.35,040.00

Available Offer

Product Details

SIMATIC S7-300, digital output SM 322, isolated, 8 DO (relay), 1x 20-pole, 24 V DC, 2 A or 230 V AC, 2 A

Q: What is the main difference between 1HF00 and 1HF01?A: The 1HF00 supports 2A per channel, while the 1HF01 is designed for high-current applications and supports up to 5A per channel.

Q: Which front connector is required for 6ES7322-1HF01-0AA0?A: You will need a 20-pin front connector. Remember to order it separately as it is not included with the module.

Q: Can this module switch 230V AC loads?A: Yes, it can switch up to 230V AC and is highly reliable for industrial power applications.
