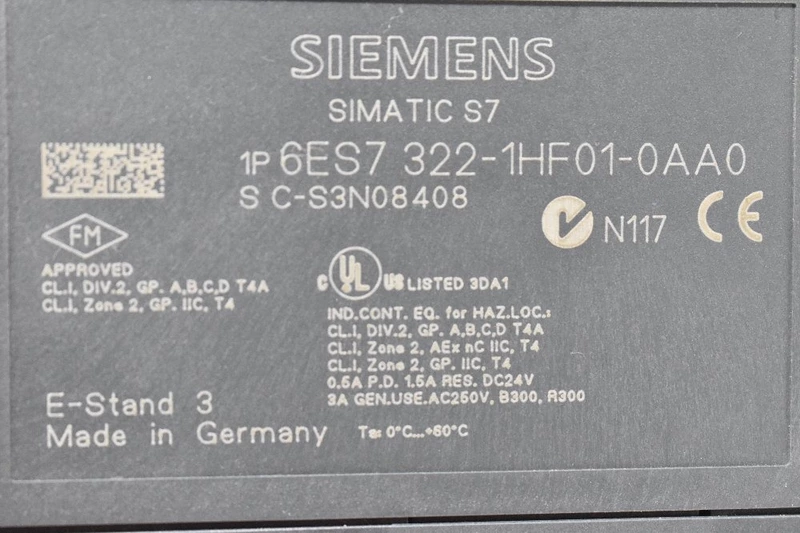

SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED,(6ES73221HF000AA0)
Feature
Specification
Output Channels
8 Digital Outputs
Output Type
Relay (Dry Contact)
Switching Voltage
24V - 120V DC / 24V - 230V AC
Max. Current
2.0A per channel
Isolation
Optically isolated in groups of 2
Connector Type
20-Pin Front Connector (Required)
Rs.25,000.00
Available Offer
Share :
Product Details
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 8 DO (RELAY OUTPUTS), 20 PIN, 24V DC, 2A OR 230V AC, 2A
Q: What is the benefit of 6ES7322-1HF00-0AA0 over Transistor modules?A: It provides Relay outputs, allowing you to switch both AC and DC voltages with a much higher current capacity of 2.0A per channel.
Q: Does it include the 20-pin front connector?A: No, the 20-pin front connector is a mandatory accessory and must be purchased separately for wiring.
Q: Can I use this with an S7-300 CPU 312 or 315?A: Yes, it is a standard expansion module compatible with all SIMATIC S7-300 CPUs and ET 200M interface modules.
