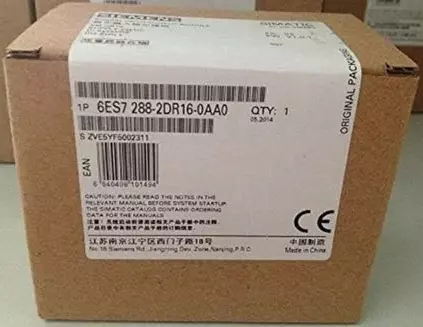

The Siemens SM DR16 (6ES7288-2DR16-0AA0) is a high-density expansion module that adds 16 Digital Relay Outputs to your S7-200 SMART PLC system. It is specifically designed to handle multiple high-current AC/DC loads like solenoid valves and contactors while maintaining a compact panel footprint.
Feature
Details
Output Channels
16 Digital Outputs
Output Type
Relay (Dry Contact)
Rated Voltage
24V DC / 240V AC
Max Current
2.0A per channel
Mounting
Side-mount (Standard DIN Rail)
Compatibility
All S7-200 SMART Standard CPUs (SR/ST)
Rs.8,400.00
Available Offer
Share :
Product Details
SIMATIC S7-200 SMART, Digital Input/Output SM DR16, 8 digital inputs/8 digital outputs, 8 DI 24V DC, sink/source current, 8 DO, relay 2A
Q: What is the difference between SM DR16 and SM DT16?
A:DR16 has Relay outputs (supports AC/DC, higher current), whereas DT16 has Transistor outputs (DC only, high-speed switching).
Q: Can I use this with S7-200 SMART CPU SR40?
A: Yes, it is fully compatible with SR20, SR30, SR40, and SR60 CPUs.
Q: Does it come with the terminal connectors?
A: Yes, original Siemens SM DR16 modules include the front terminal blocks.
