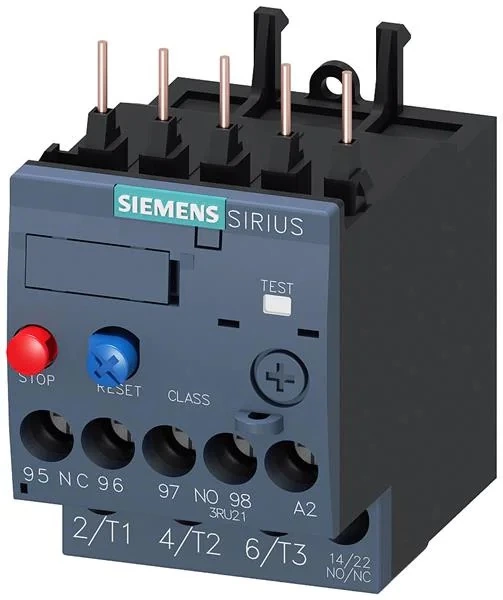

Siemens-SIRIUS-3RU2116-1GB0-Thermal-Overload-Relay-4.5-6.3-Amps-S00

Siemens SIRIUS 3RU2116-1GB0 Thermal Overload Relay | 4.5...6.3 A | Size S00

Overload relay 4.5...6.3 A Thermal For motor protection Size S00, Class 10 Contactor mounting Main circuit,(3RU21161GB0)

Feature	Specification
Current Setting Range	4.5 ... 6.3 A
Frame Size	S00 (Direct Mounting)
Trip Class	CLASS 10 (Standard Protection)
Auxiliary Contacts	1 NO + 1 NC (For status & trip)
Mounting Type	Direct Mounting on Contactor / Stand-alone (with adapter)
Reset Method	Manual / Automatic (Selectable)

Rs.3,000.00

Available Offer

Product Details

Overload relay 4.5...6.3 A Thermal For motor protection Size S00, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

Q: What is the current range of 3RU2116-1GB0?A: The current setting range for this relay is 4.5 Amps to 6.3 Amps, which can be adjusted via the dial on the front.

Q: Which contactors can I use with this relay?A: It is compatible with all Siemens Size S00 contactors (3RT201 series). For other sizes or standalone mounting, a separate terminal support block is required.

Q: Does it have a test button?A: Yes, it features a test slider and a stop button to check the control circuit's functionality during commissioning.
