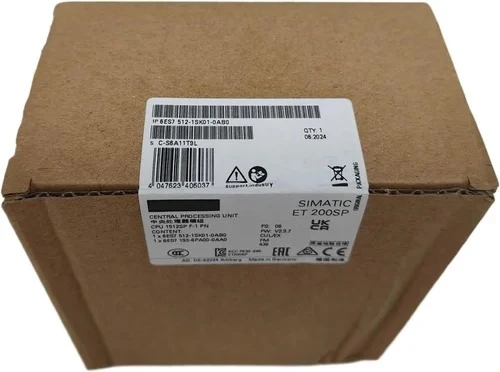

Siemens SIMATIC ET 200SP Fail-safe CPU 1512SP F-1 PN | 300KB Code / 1MB Data | 6ES7512-1SK01-0AB0
SIMATIC DP, CPU 1512SP F-1 PN for ET 200SP,(6ES75121SK010AB0)
Feature
Specification
Work Memory
300 KB (Code), 1 MB (Data)
Safety Level
SIL 3 (IEC 61508), PL e (ISO 13849)
Bit Performance
48 ns (High-speed processing)
Interface
1 x PROFINET IRT (via BusAdapter)
Max. I/O Modules
Up to 64 ET 200SP modules
Memory Card
Required (SIMATIC Memory Card)
Rs.349,080.00
Available Offer
Share :
Product Details
SIMATIC DP, CPU 1512SP F-1 PN for ET 200SP, Central processing unit with Work memory 300 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 3-port switch, 48 ns bit performance, SIMATIC Memory Card required, BusAdapter required for Port 1 and 2
FAQ SECTION
Q: Do I need special software for this CPU?A: Yes, in addition to TIA Portal STEP 7 Professional, you also need the STEP 7 Safety Advanced license to program the fail-safe functions.
Q: Can I use standard ET 200SP modules with this F-CPU?A: Yes, you can mix standard modules and F-modules (Fail-safe) in the same station.
Q: Does it include the BusAdapter?A: No, the BusAdapter (for RJ45 or Fiber connections) must be ordered separately based on your network requirements.
