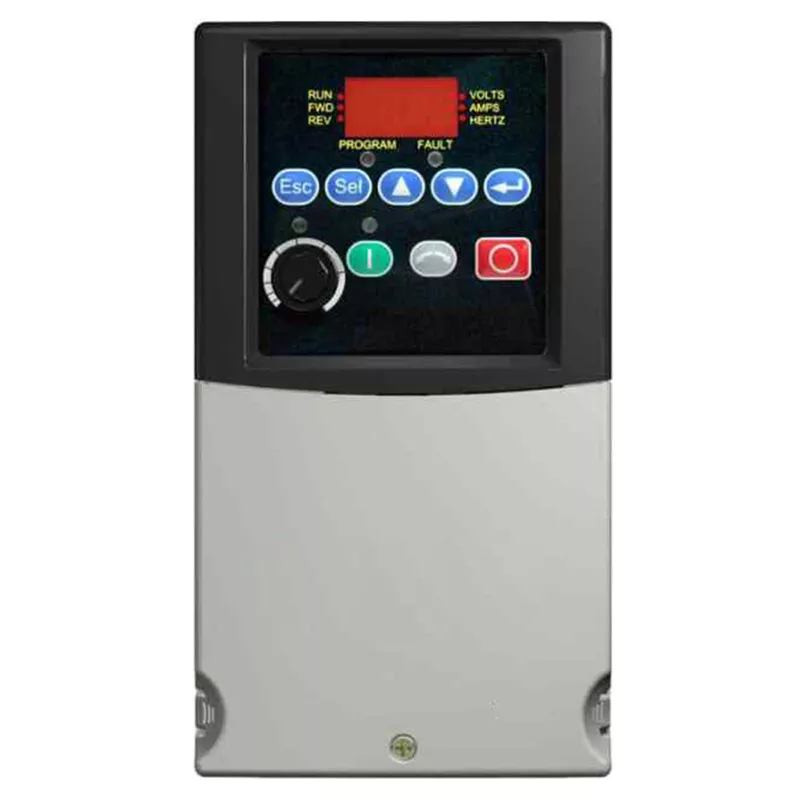

The Allen-Bradley 22BD6P0N104 PowerFlex 40 AC Drive is a high-performance variable frequency drive designed for precise motor speed control, energy savings and industrial automation applications. The drive operates on 380-480V AC three-phase input power and delivers 2.2kW (3HP) output with a 6A current rating.
As part of the PowerFlex 40 family, this drive provides advanced motor control using Volts/Hertz (V/Hz) and Sensorless Vector Control technologies. The compact design allows easy installation in industrial control panels while maintaining reliable operation in demanding environments.
The drive includes integrated RS485 communication, PID control capability, digital keypad and advanced protection functions. It is widely used in conveyors, pumps, fans, compressors, packaging machines, material handling systems and manufacturing equipment.
The PowerFlex 40 series is recognized for simple commissioning, flexible configuration and seamless integration into Allen-Bradley automation systems.
Technical specification
Manufacturer: Allen-Bradley
Series: PowerFlex 40
Part Number: 22BD6P0N104
Product Type: AC Variable Frequency Drive
Power Rating: 2.2 kW / 3 HP
Input Voltage: 380-480V AC, 3 Phase
Output Current: 6 A
Communication: RS485
Enclosure: IP20 Open Type
Mounting: Panel Mount
Frame Size: B
Condition: New
FAQ
Q1. What is 22BD6P0N104?
22BD6P0N104 is an Allen-Bradley PowerFlex 40 AC Variable Frequency Drive used for industrial motor speed control.
Q2. What is the power rating of this drive?
The drive is rated at 2.2kW (3HP).
Q3. What voltage does it operate on?
It operates on 380-480V AC three-phase power.
Q4. Does it support communication networks?
Yes, it includes integrated RS485 communication.
Q5. What industries use this drive?
Manufacturing, packaging, material handling, pumps, fans, conveyors and process industries.
Q6. Is this model still active?
Rockwell Automation lists this model as End of Life and recommends replacement model 25B-D6P0N104.
