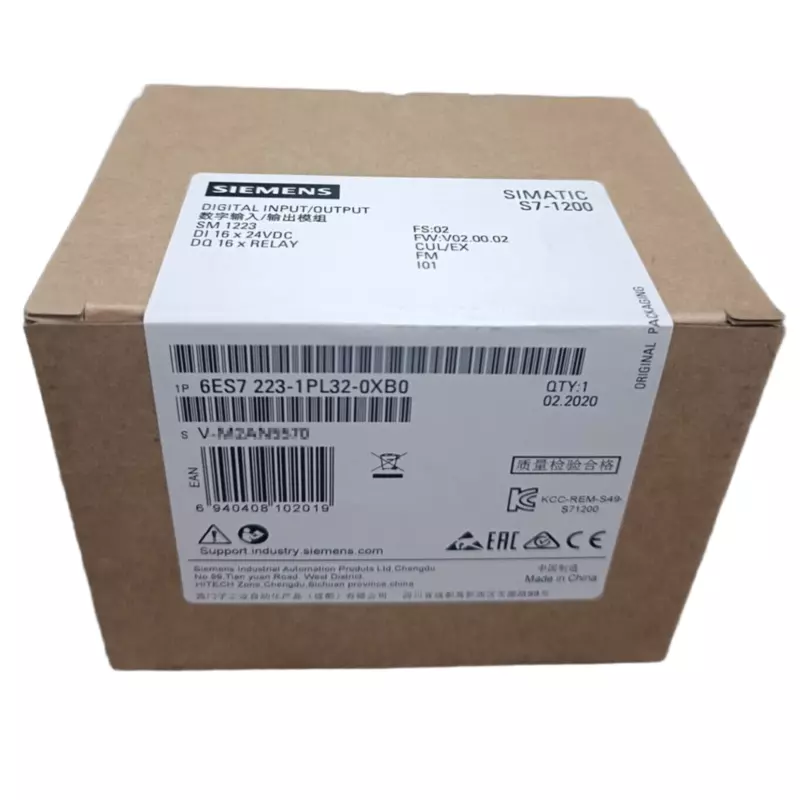

6ES7223-1PL32-0XB0 is a SIMATIC S7-1200 Digital I/O Module (SM 1223) designed for compact PLC systems, featuring 16 digital inputs ( 24 V D C 2 4 𝑉 𝐷 𝐶 , sink/source)
Module Type: Digital Input/Output (DI/DQ) Combination.
Series: SIMATIC S7-1200.
Digital Inputs: 16 Channels (24V DC).
Digital Outputs: 16 Channels (Relay Outputs).
Relay Switching Capacity: Up to 2.0 A per channel.
Rated Voltage: 24V DC (Inputs) / 5V to 250V AC/DC (Relay Outputs).
Dimensions: 70 mm (Width) x 100 mm (Height) x 75 mm (Depth).
Mounting: Standard 35mm DIN Rail.
Rs.21,098.80
