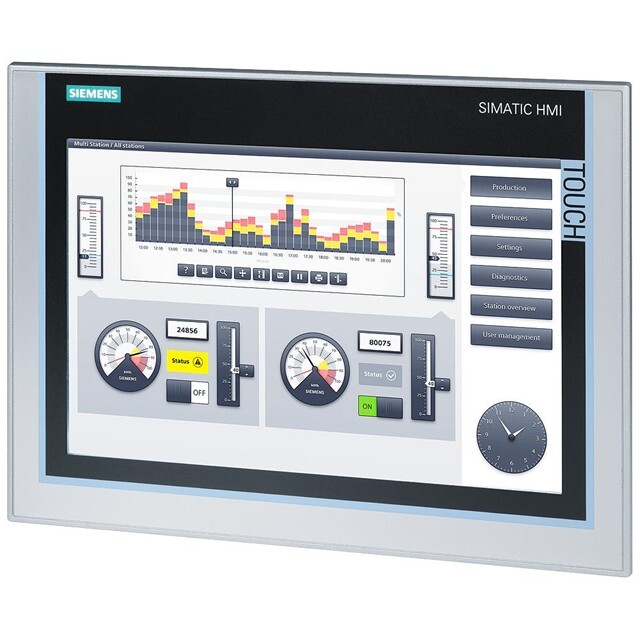

Display: 12.1" widescreen TFT, 1280x800 pixel resolution, 16 million colors, backlight dimmable 0-100% Processor: X86 type Memory: 12 MB user data memory, flash and RAM included Interfaces: 1 industrial Ethernet port with 2 ports switch, 1 RS422/485 combined port, 2 USB 2.0 ports, 2 SD card slots Power: 24 V DC supply with typical power consumption around 20 W Mounting: Vertical, portrait and landscape format possible, max tilt without external cooling 35° Additional features: Real-time hardware clock with backup, analog resistive touchscreen, 40 direct keys as S7 input I/O, extensive protocol support including TCP/IP, PROFINET IO, PROFIBUS, EtherNet/IP, HTTP/HTTPS web server functionali |
